Improved Multi-Agent Knowledge Sharing System
A multi-agent chatbot system for detecting media bias in news articles and providing unbiased summaries.
Project Overview
This project implements a multi-agent with integrated dynamic KG system capable of detecting media bias in news articles and providing unbiased summaries. The system utilizes multiple specialized agents for tasks such as bias detection, fact-checking, and knowledge graph maintenance.
Key Features
Multi-agent system with Structure knowledge graph
Three-way comparison: RAG vs. LLM-only VS LLM+KG
Dynamic knowledge graph integration
Specialized Bias detection and analysis agent
Specialized Fact_checking agent
Statistical validation with McNemar’s test
System Architecture
The system consists of several specialized agents:

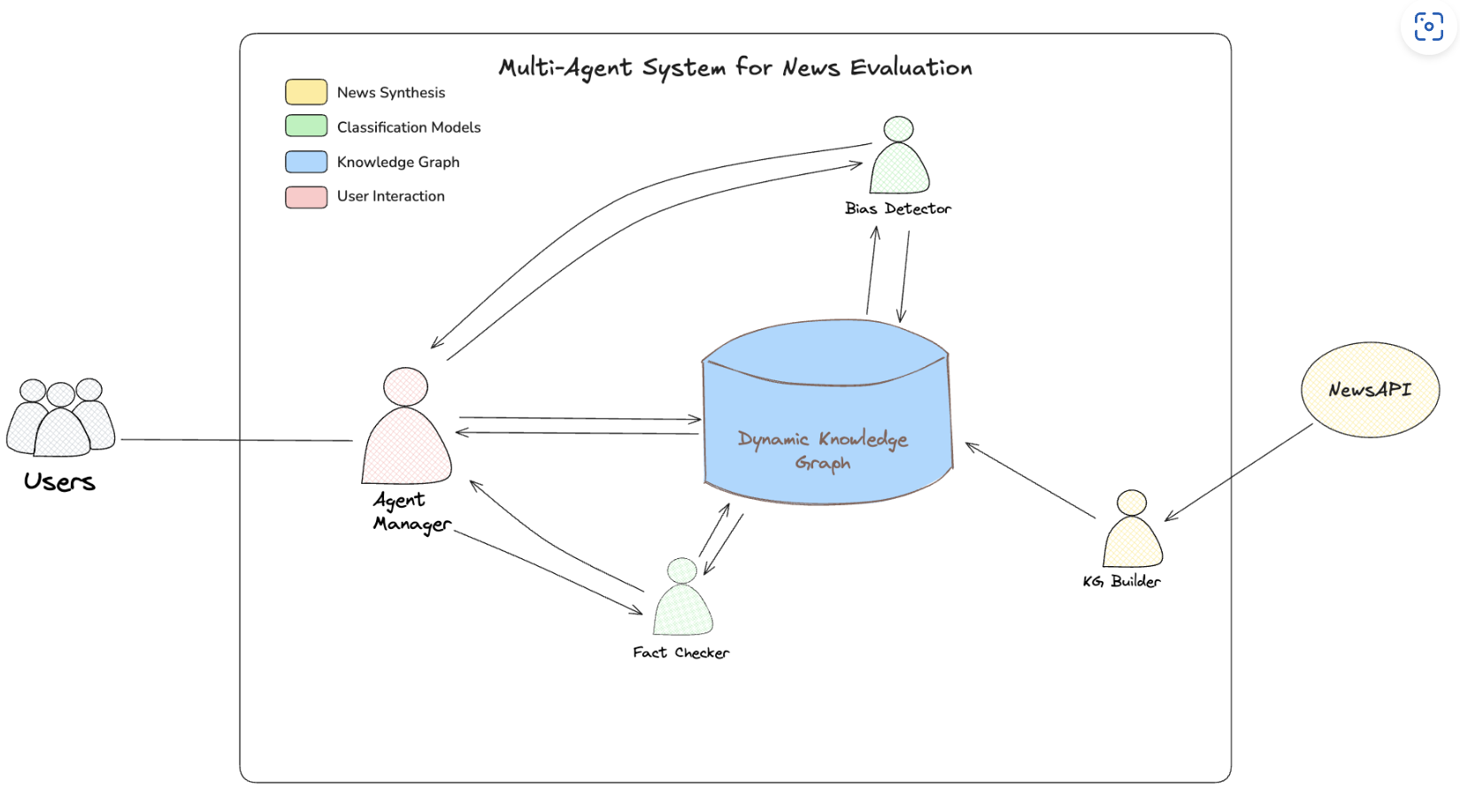

Multi-agent system architecture diagram
Knowledge Graph : A Neo4j-based dynamic knowledge graph that stores news articles and entity relationships
Specialized Agents : Bias Analyzer Agent : Analyzes political news articles bias and leaning
Fact Checker Agent : Verifies factual claims against knowledge graph context and internal knowledge
Agent Manager :Orchestrates workflow between agents Routes user requests to appropriate processing paths Returns consolidated results to the user interface
** Integration Framework**:
GraphState Schema: Standardized data structure for agent communication
Streamlit UI: User-friendly interface for interacting with the multi-agent system. This streamlined architecture enables efficient information sharing through the knowledge graph, allowing agents to leverage collaborative intelligence also maintaining specialized expertise in their respective domains.
Key Findings
Our experiments demonstrate that structured knowledge graph integration significantly outperforms both unstructured retrieval (RAG) and direct LLM prompting:
Bias Detection (Weighted F1):
RAG Baseline: 0.287
LLM-only: 0.713
LLM+KG: 0.901 (214% improvement over RAG, 26% over LLM-only)
Fact-Checking (Weighted F1):
RAG Baseline: 0.661
LLM-only: 0.721
LLM+KG: 0.794 (20% improvement over RAG, 10% over LLM-only)
All improvements are statistically significant (p < 0.01) based on McNemar’s test with bootstrap confidence intervals.
Tech Stack
Python
Streamlit
Large Language Models**: Claude 3 via AWS Bedrock
Neo4j
Pytest
Project Folder Structure
project_root/
├── src/
│ ├── component/
│ │ ├── bias_analyzer_agent/
│ │ ├── fact_checker_agent/
│ │ ├── KG Builder/
│ │ └── agent_manager/
│ │ ├── manager.py
│ │ └── transistion.py
│ ├── memory/
│ │ ├── knowledge_graph/
│ │ ├── schema/
│ │ └── state/
│ ├── util/
│ │ └── aws_helperfunction/
│ ├── workflow/
│ │ ├── config.py
│ │ ├── graph.py
│ │ └── simplified_workflow/
│ └── ui/
│ └── streamlit/
│ └── chatbot_ui.py
│
├── system_evaluation/
│ ├── result/
│ ├── test_dataset/
│ ├── evaluate.py
│ ├── metrics_updated.py
│ └── visualization_updated.py
├── unit_tests_v2/
│ ├── test_api_keys.py
│ ├── test_bias_analyzer.py
│ ├── test_fact_checking.py
│ ├── test_fact_kg_builder.py
│ └── test_bedrock_setup.py
├── docs/
├── project_proposal/
├── research_paper/
│ ├── latex/
│ │ └── fig/
│ └── word/
├── assets/
│ └── fig/
├── reports/
│ ├── latex_report/
│ │ └── fig/
│ ├── markdown_report/
│ └── word_report/
└── presentations/
└── preliminary_findings/Development Guide
Contact Information
Team Members
Modupeola Fagbenro
Christopher Washer
Chella Pavani
